Optic 4XL NextGen 500W Dimmable COB LED Grow Light (UV/IR) 3500k COBs 120 Degree Lenses
USA Orders: Ships within 1 business day
Outside USA Orders: Ships within 1-3 business days
Now the even more power & efficient Optic 4XL NextGen loaded with all top of the line, high end led components to give you unmatched yield and potency combination. Each COB now driven at up to 100 watts each with better cooling. Loaded with nearly 3x as many bloom enhancers with the upgraded CREE XPE Deep Reds and Royal Blue LEDs for a maximum in crop quality. Optic 4XL has proven itself to produce Mega Yields with chart-topping bud quality and resin production.
253-881-1355 or inquire at Sales@OpticLED.com
The 3 biggest improvements with the new Optic 4XL NextGen is the controller ports, bloom enhancers upgrade adding 50 more watts & Cooling system upgrade. You can now add the Optic LED 7" Touchscreen Master controller to take your grow to a whole new level that very few growers get the opportunity to operate at. You will have the Automated Sunrise and Sunset feature which is very easy to set up and have a lot of benefits. The automated sunrise saves you a lot of power on the light fixture and with air conditioning costs. Most importantly your plants will love you even more and you will instantly see signs of less stress and more robust growth.
The New NextGen Bloom Enhancer array is absolutely amazing! All new everything, loaded with 5x as many LEDs from Samsung & CREE and now driving at 100 watts of power bringing total fixture max power from 450w to 500w. The New X pattern design with double rows spreads the special light from these bloom enhancers all across your garden. Optic 4XL NextGen is highly refined and it will take your crop quality and yields to the next level.
Patented Pending Optic 4XL NextGen 500 watt Dimmable LED Grow Light delivers a highly refined more powerful version compared to the first-gen Optic 4XL.
Optic 4XL NextGen Components:
Max Power: 500 watts
HID equivalent: 1000 watt DE HPS

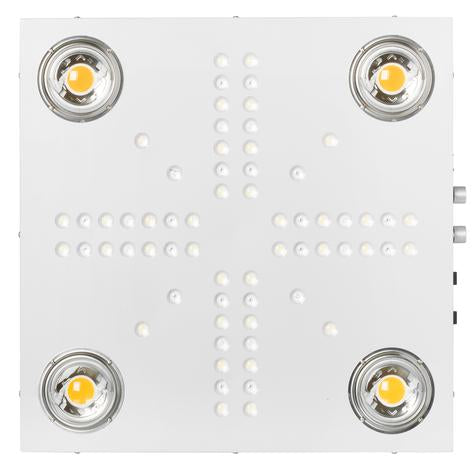

Bloom Enhancer Array:
Red LEDs: CREE XPE 660nm Deep Red LEDs - 16 pcs
Blue LEDs: CREE XPE 460nm Royal Blue LEDs - 8 pcs
White LEDs: Samsung LM301H Horticulture Series LEDs - 144 pcs
Ultra Violet: UV LED chips - 2pcs
Infrared: IR LED chips - 2 pcs
COB's: USA MADE CREE COBs
- 4 Total CREE Xlamp CXB3590 COB LEDs
- 4 x 3500k Daylight White CXB3590 COB LEDs
- Each COB is 137w max & under driven @100w max at full power
COBs: 4 Units USA Made CREE XLAMP CXB3590
Optics:
Bloom Enhancers: Primary & Secondary 120 Degree Lenses
COBs; 120 Degree Lenses
Drivers: 2 Commercial Grade Meanwell Dimmable Drivers (Industry Best)

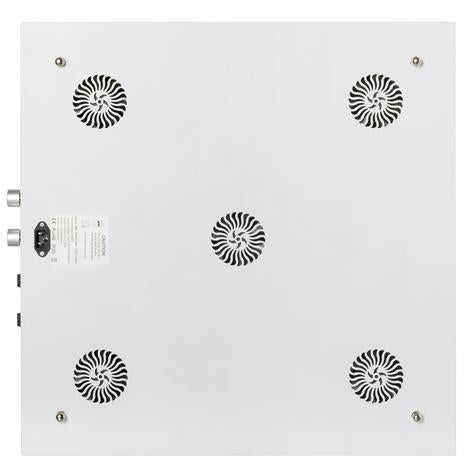

Thermal management: 5 x cooling fans, slotted housing & overbuilt Aluminum fin heat-sinks.
COBs: USA Made CREE XLAMP CXB3590
COB Holder: Soderless COB Holder
Optics: COBS are outfitted with high-quality 120-degree glass lens standard. Glass Lens Directs light downwards, magnifies par, and increases canopy penetration by up to 200%.
Recommended Coverage area & hanging height :
- Veg: 5' x 5' @30"
- Flower: 4' x 4' @18"- 24" (1.2m x 1.2m)
- or 5' x 5' (1.5m x 1.5m) Max
Recommended hanging height:
120 degree LENS for 4x4
- Veg: 2 4"-30" (.6m - .75m)
- Flower: 16"-20" (.4m - .5m)
120 degree LENS for 5x5
- Veg: 24"-30" (.6m - .75m)
- Flower: 18"-24" (.4m - .5m)
Light Controls:
Switches:
Switch#2:Turns COBs ON & OFF (Controls all 4 CREE COBS together)
Switch#1: Turns Bloom Enhancer ON & OFF (Controls all 112 Samsung 301H and CreeXPE LEDs)
Switch #1 & Switch#2: ON (Full Power)
COBs Dimmer: Tune your 4 COBs between 10-100% Power
Bloom Enhancers: Dial in your Bloom Enhancer between 10-100% Power
Bloom Enhancer Specs:
- Bloom Enhancers Driven at 100 watts (on max Power )
- 16 pcs CREE XPE 660 nm Deep Red LEDs
- 8 pcs CREE XPE 460nm Royal Blue LEDs
- 144 pcs Samsung LM301H 3500k top bin LEDs. - 4 LEDs per Lens.
- 2 pcs Ultra Violet LEDs (Dim Purple LED)
- 2 pcs Infrared LEDs (Dim Red Dot)
Optics :
CREE CXB3590 COBs: 120 Degree Wide Beam Glass Lens
Samsung LM301H LEDS: 120 Degree Wide Beam Primary & Secondary Lens
CREE XPE LEDs: 120 Degree Primary & Secondary Wide Beam Lens
PAR Efficacy: TBA
PPFD for 4x4 area (1.2m x 1.2m) @ 18":
PPFD for 4x4 area (1.2m x 1.2m) @24":
Par Map and PPFD info coming soon!
Optic 4XL NextGen 500w Specifications:
HID/HPS equivalent: 1000 watt DE HPS
Kelvin: 3500K Day Light White
IP Rating: IP65 Waterproof
PPFD: 1000+
ppf/w :
Actual Power Draw: 500 watts max
Amps: 4 Amps at 120v (2.1 Amps @ 240v)
Voltage : Internationally Used 110 volts -277v
Lifetime: 100,000 Hours+
Warranty: 10 Years full warranty - Lifetime warranty on Meanwell Driver
Shipping: Free Shipping to 60+ countries
Cables: 6 Foot attached power cord
Plug: USA, CANADA, EURO, Commercial, etc.
(We automatically ship the correct cord for your country)
Dimming: 2 Dimmer Knobs. COBs and Bloom Enhancers
Master Controller: Fully Compatible (adds auto sunrise & sunset feature)
Finish: Matte White
Fixture Dimensions: "24 L x 24" W x 5" H
Fixture Weight: 29 lbs
Shipping Weight: 39 lbs
Hanger: Comes with 4 adjustable rope ratchet hangers
Recommended for: Grow Tents, Grow Rooms, Greenhouses & Indoor Cultivations.
*International Shipments may require Taxes & Duties. Contact us for a quote!
Sales@OpticLED.com - Commercial@OpticLED.com
Optic 4XL NextGen Patent Pending
UL Listing: (Pre Approved & Pending as of 9/2020 )
Q & A:
Q: What is the benefit of the Touchscreen Controller
A: Automated Sunrise & Sunset feature built into the master controller helps you recreate mother nature to tap into the full potential of your crop.
Ex: You can set at 7:00 AM for your Optic 4XL to come on with just the Bloom Enhancers to click on then have the COBs click on 30 minutes later and gradually increase intensity over time and your plants will love you for it.
